Tugs ( Water Tractor )

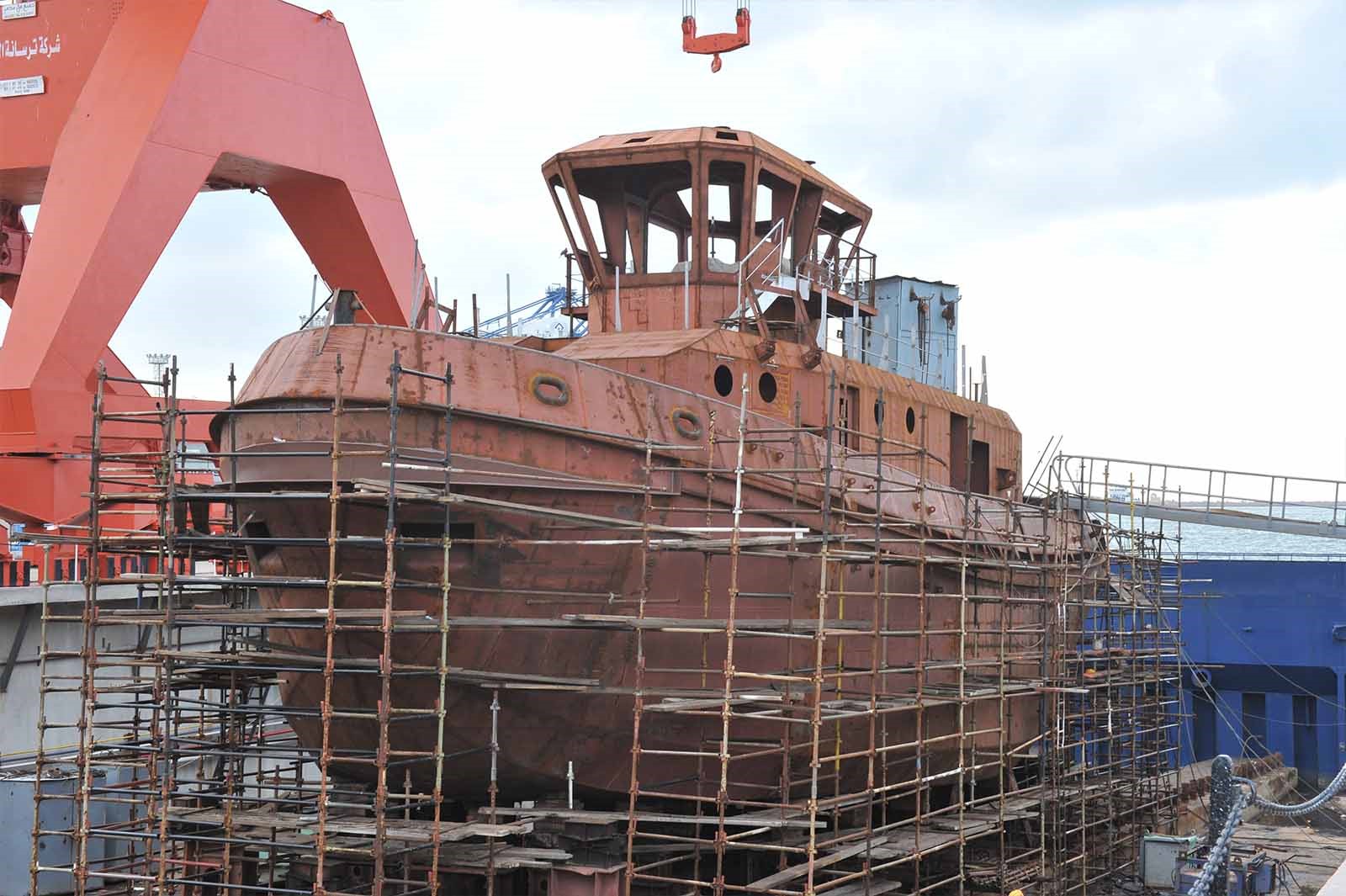

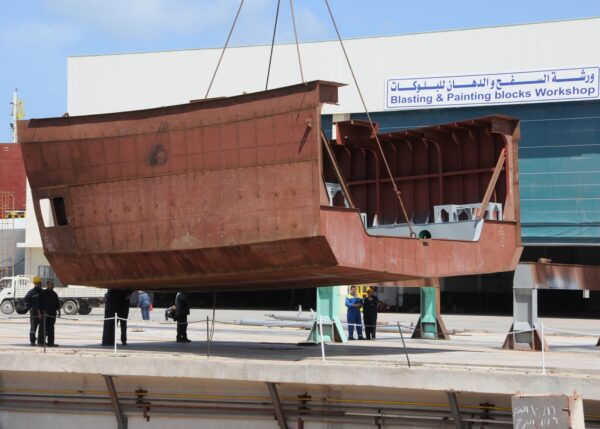

Building 2 Tugs (Water Tractors) of 50 Tons-Bollard Pull each for The Red Sea Port Authority

This project is the third of its kind where ASY has built several similar tugs before . This type of Tractor Tug is a powerful, maneuverable, and quick harbor tug with minimal crew, minimal size and very low maintenance requirement making it one of the best vessels suitable for work in the ports. This is the most efficient small ship handling tool in the world today.

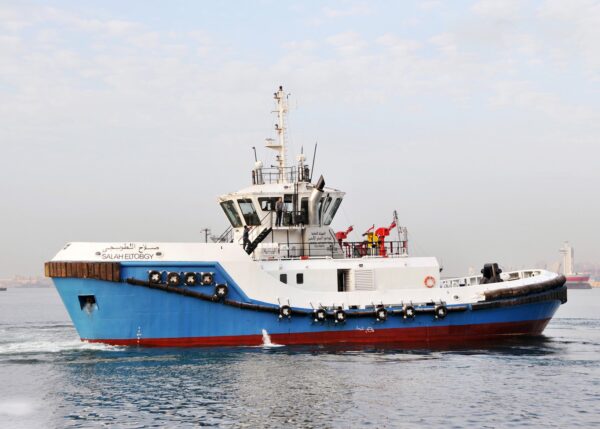

  • Ship Name : Salah El-Tobgy Tractor Tug, and its sister ship 25 January
  • Classified as standby and service ship and it is capable of towing other floating vessel
  • The tug is known for its high level maneuverability specially in harbors , restricted areas ,canal & confined waters
  • The Tug is with 6 persons operating crew
  • It is powered by two main engines of 1920 KW power each, and propelled by two Voith Schneider propellers
  • Provided with fenders for maximum protection all round
  • Very adapted to boarding moving ships:pilot and crew transfer,customs,coast guard ,etc
  • It is Also used as general purpose harbor shuttle ,transfer boat.
  • The boat designed to survive rough environments with minimum care and maintenance requirements

Highlights:

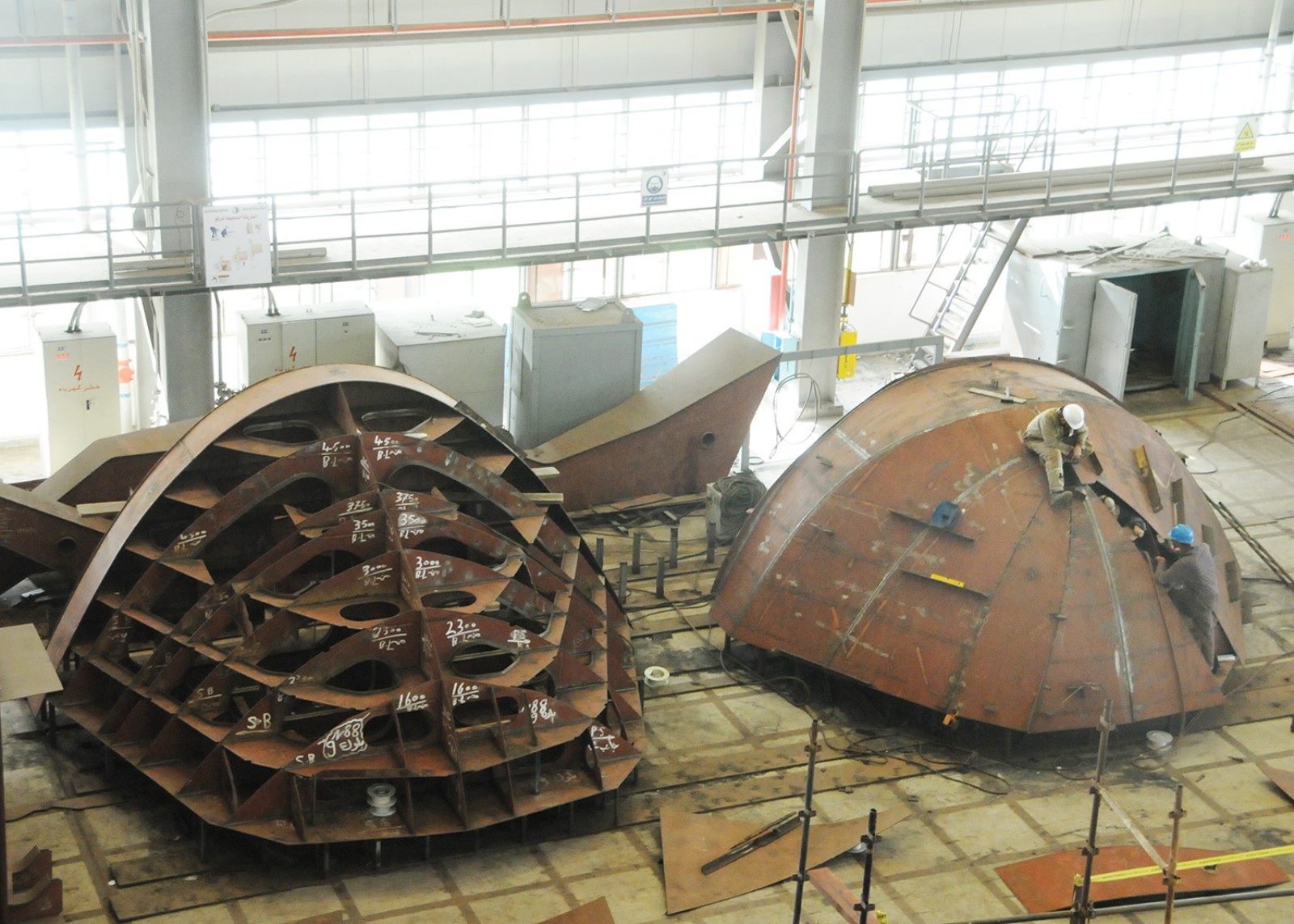

  • 6 mm Thick hull shell with 40*40 mm Rubbing Strakes
  • 150 mm rubber D-fender on stem
  • Spacious Engine room with easy access
  • Commercially rated engines and konrad stern drive
  • Very dry and stable in all weather conditions

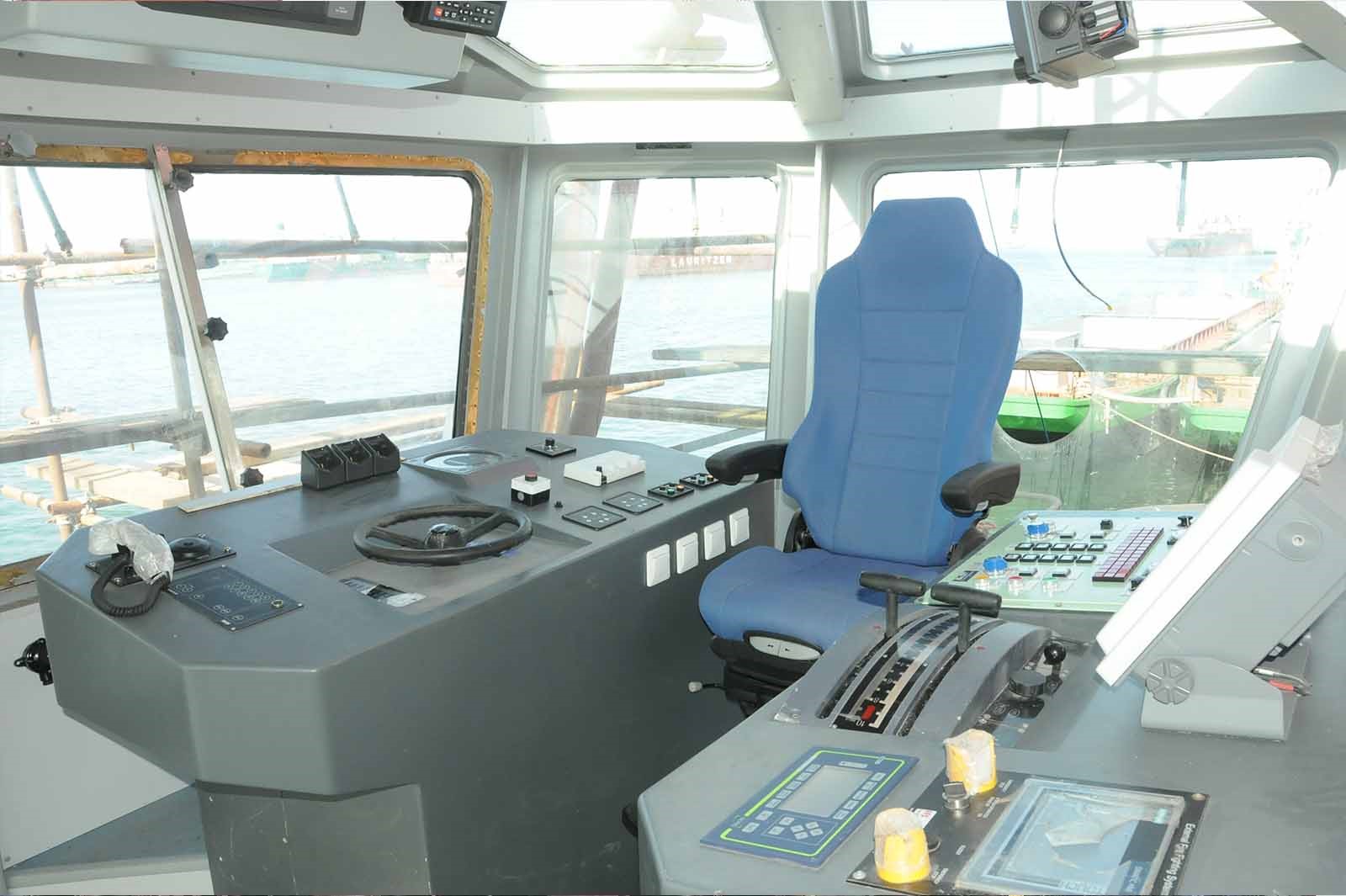

  • 360 degrees visibility and overhead glazing
  • Lloyd’s Register design approval

Boat Series / ModelN30
Date Of DeliveryDecember 2013
OwnerRed Sea Port Authority
TypeTractor Tug
Length Overall35      M
Beam Overall11.4      M
Draught3.07      M
Displacement633      Ton
Speed12      Knots
Fuel Capacity80      M3
Main Engine/Model2*Yanmar6EY26-750RPM
Power2*1920      KW
Crew6      Persons
